Reconcile the Manufacturing Data Behind Your MES, ERP, and Quality Systems

In a plant, it means reading the databases behind your MES, ERP, quality and SCADA systems as sources into one pipeline, joining them on the keys they share — part number, work order, supplier ID — and landing the result as tables anyone can query. The systems themselves stay where they are; nothing is migrated and nothing is re-keyed. What changes is that the per-line, per-shift or per-supplier number stops being assembled by hand for each report.

The reports are not the problem — the work behind them is. Someone exports from the MES, exports from the ERP, pastes both into a workbook, fixes the mismatches by hand, and repeats it next shift; when a number is questioned, nobody can show exactly how it was produced. Integrating the sources moves that reconciliation into a pipeline that runs the same way every time, so the report becomes repeatable and inspectable instead of rebuilt.

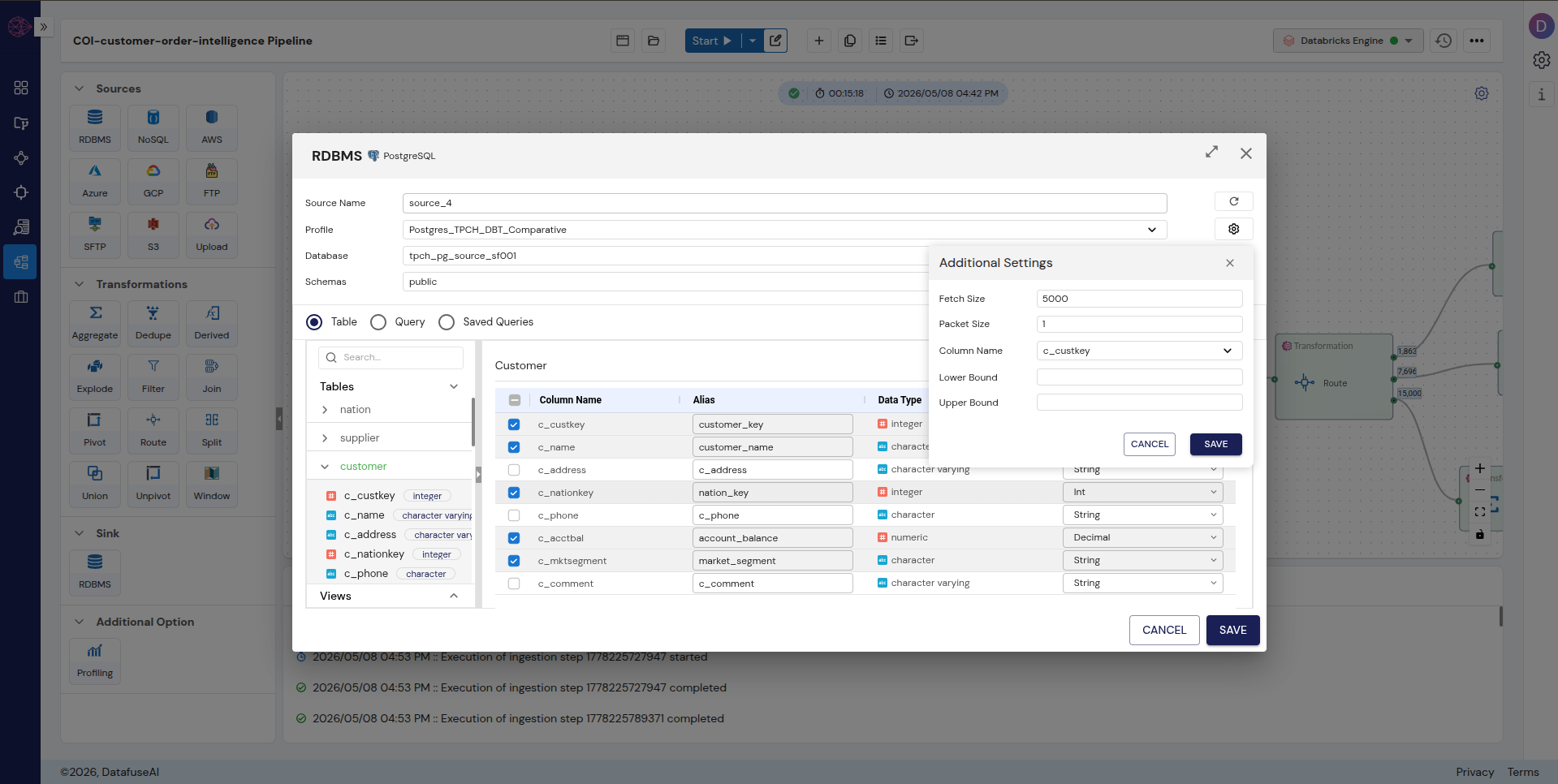

The work is per-system rather than per-project, so the honest answer is a shape rather than a date. Each source needs one connection profile — the database behind your MES, ERP, quality or SCADA system, registered once and reused — and then a pipeline that reads it, joins it to the others, and writes the output table. The second and third source go faster than the first, because the field definitions and units are already settled. What actually drives the timeline is how much your systems disagree about the same field, not the tooling.

The return shows up as mechanisms rather than a single percentage, because no sourced figure covers every plant. You stop paying for the same manual pass twice a shift; one field definition is reused instead of re-argued between production and supplier reporting; the shift-end output is produced by a scheduled job rather than assembled by an analyst; and every figure carries a stored run record, so answering "how was this derived" does not become its own project.

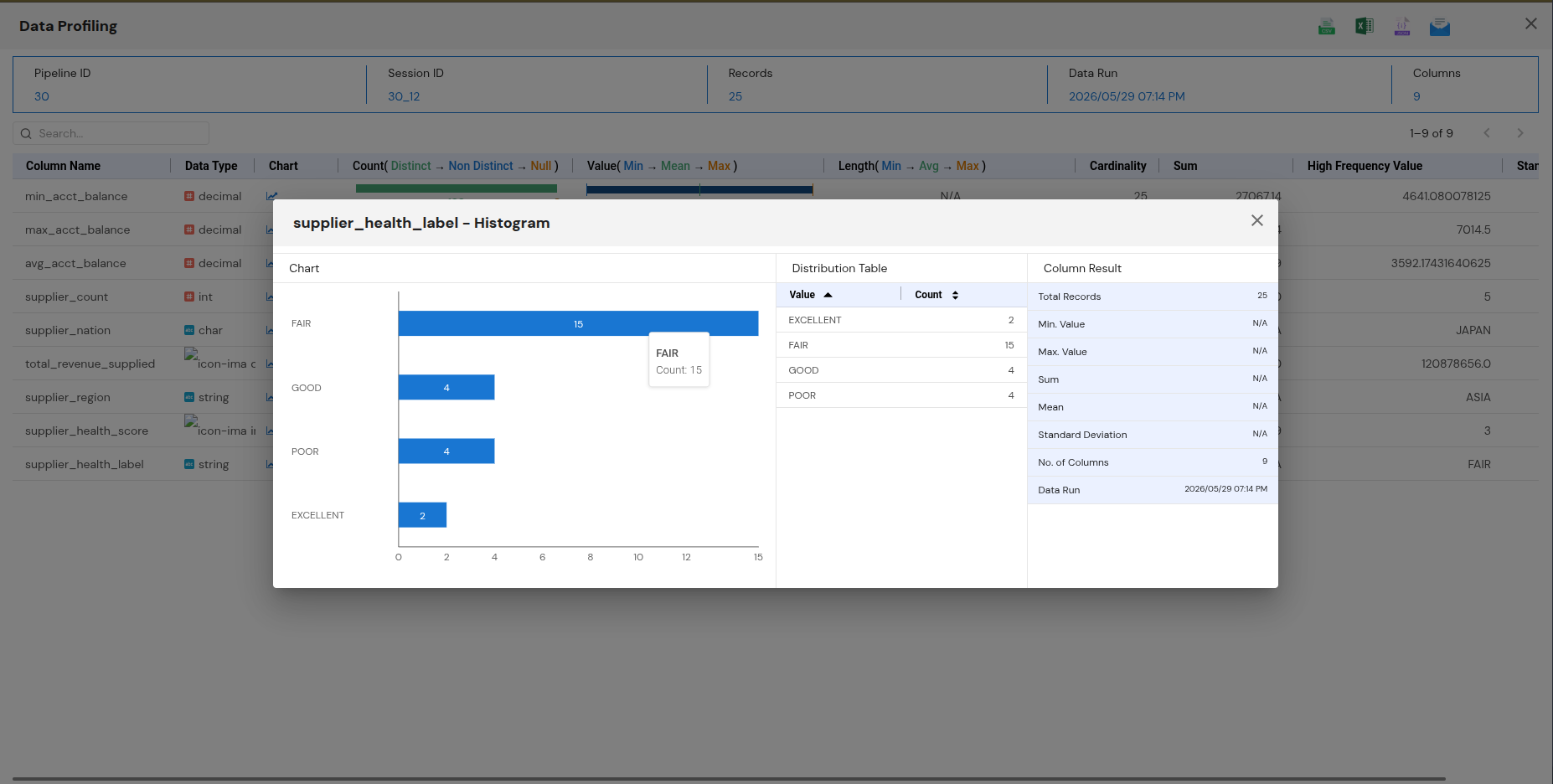

Field definitions that differ between systems and were never reconciled. If the MES counts a part as complete at a different point than the ERP does, or the quality system scopes a lot differently, the integrated view is wrong in a way that looks completely normal — the totals reconcile, the report renders, and the decision is made on a number that means two things at once. That is why profiling the output matters as much as building the pipeline: it is how the mismatch surfaces before anyone acts on it.

Because several systems each own part of the truth about the same part. Engineering creates it in PLM, the ERP holds the purchasing and costing view, the MES holds the production view, and the quality system holds its test history — each with its own identifier and its own required fields. When a part arrives that does not match cleanly, whoever is under pressure creates a new record rather than finding the existing one, and no system tells the others it happened.

BOM and routing tables are read from the ERP or PLM database as sources, like any other table, and joined to production, receipt or quality records on the keys they share. DataFuseAI does not replace them, re-key them, or become the system of record for them — the structure stays where engineering and planning maintain it. What you get is a queryable copy of that structure alongside the transactional data it explains.

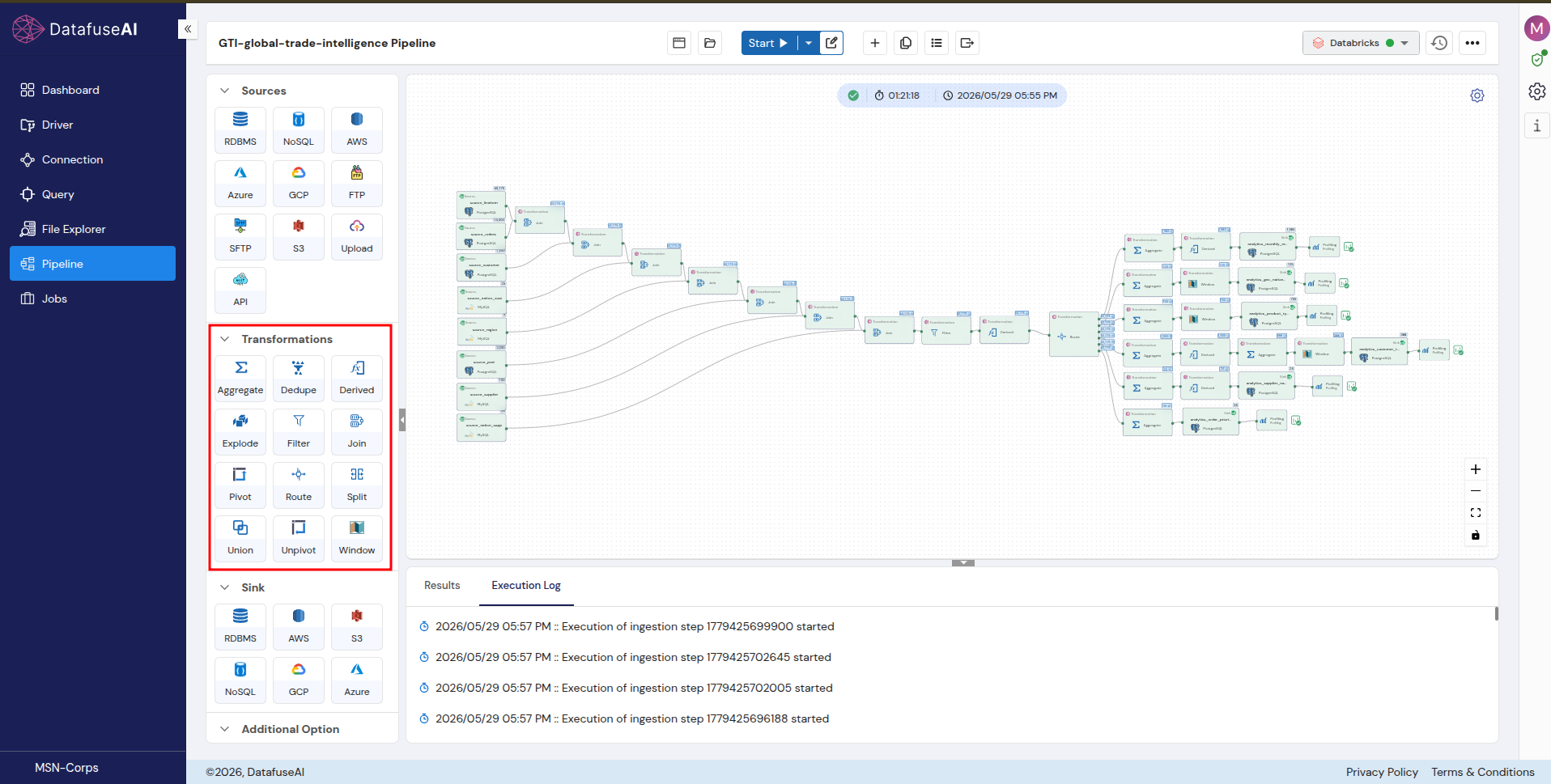

Normalize them once, in the pipeline, with a derived step. Whatever each source writes — kilograms in one system, pounds in another, cases against eaches, minutes against hours — the conversion becomes a transformation in the pipeline rather than a formula in someone's workbook. Every job downstream reuses that definition, so a per-shift total and a per-supplier total are expressed in the same units without anyone re-checking.

DataFuseAI holds no sector certification, and the frameworks in those sectors bind the manufacturer rather than a data platform. What a data platform can contribute is the evidence those audits ask for: traceability records consolidated into queryable tables, the field definitions applied to them, and a stored run history showing what produced each figure and when. That is the same contribution NIST IR 8536 describes for supply-chain traceability, and the same kind of evidence an ISO 9001 audit expects. If your programme requires the data to stay inside your own network, on-premise deployment is available.

Four recur. The same supplier is recorded under different identifiers in your ERP and your purchasing system, so spend and delivery reliability get counted twice or scored against the wrong record. Formats do not match between systems — dates, units, part-number conventions — so a join that should be exact is not. Manual entry introduces spelling and transcription variants that no system flags. And field definitions differ, so the same column name means two things in two places.

Audit readiness is the ability to show what produced a figure, not just to produce it. If the number was assembled by hand from exports, the evidence is a workbook and someone's memory of the steps; if it came out of a pipeline, the evidence is the pipeline itself plus a logged run and the access events around it. DataFuseAI records pipeline runs and access events and controls access by role, which is the traceability and audit evidence an ISO 9001 audit expects. Poor data quality shows up there as missing evidence, not just a wrong number.

Accuracy and currency are two different requirements. Accuracy decides whether the number is right; currency decides whether it is current enough for the decision in front of you. DataFuseAI runs scheduled batch pipelines — shift-end, nightly, or on your reporting cycle — which is current enough for shift reviews, quality trending and supplier scoring, and it is not a streaming or condition-monitoring layer. If a decision needs data from the machine as it happens, that belongs in your control system, and the reporting view DataFuseAI produces sits downstream of it.
